SAE-A

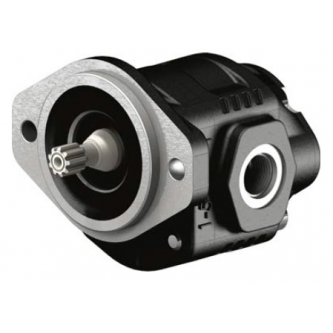

Gear pump Binotto NPLH-10 SAE-A

Product code 10503410103

Availability: Currently not available

Notify me about availability

Product features:

Working volume - 10cc/rev

Turning direction - Two-way

Max. working pressure (continuous) - 280 bar

Flange type - SAE-A

Centering diameter - 82.6mm

Roller type - 16x32 spline - 9 teeth, SAE-A

Pump type - Toothed

Producent - OMFB Binotto

Description - NPLH SAE-A Hydraulic Pump with 2 Rear and 2 Side Ports 7/8-14 UNF-2B; SAE 10

Comparison code - 105-034-10103

Gear pump Binotto NPLH-12 SAE-A

Product code 10503410121

Availability: Currently not available

Notify me about availability

Product features:

Working volume - 11.92 cm3/rev

Turning direction - Two-way

Max. working pressure (continuous) - 280 bar

Flange type - SAE-A

Centering diameter - 82.6mm

Roller type - 16x32 spline - 9 teeth, SAE-A

Pump type - Toothed

Producent - OMFB Binotto

Description - NPLH SAE-A Hydraulic Pump with 2 Rear and 2 Side Ports 7/8-14 UNF-2B; SAE 10

Comparison code - 105-034-10121

Gear pump Binotto NPLH-16 SAE-A

Product code 10503410167

Availability: Currently not available

Notify me about availability

Product features:

Working volume - 15.9 cm3/rev

Turning direction - Two-way

Max. working pressure (continuous) - 280 bar

Flange type - SAE-A

Centering diameter - 82.6mm

Roller type - 16x32 spline - 9 teeth, SAE-A

Pump type - Toothed

Producent - OMFB Binotto

Description - NPLH SAE-A Hydraulic Pump with 2 Rear and 2 Side Ports 7/8-14 UNF-2B; SAE 10

Comparison code - 105-034-10167

Gear pump Binotto NPLH-20 SAE-A

Product code 10503410201

Availability: Currently not available

Notify me about availability

Product features:

Working volume - 20cc/rev

Turning direction - Two-way

Max. working pressure (continuous) - 260 bar

Flange type - SAE-A

Centering diameter - 82.6mm

Roller type - 16x32 spline - 9 teeth, SAE-A

Pump type - Toothed

Producent - OMFB Binotto

Description - NPLH SAE-A Hydraulic Pump with 2 Rear and 2 Side Ports 7/8-14 UNF-2B; SAE 10

Comparison code - 105-034-10201

Gear pump Binotto NPLH-25 SAE-A

Product code 10503410256

Availability: Currently not available

Notify me about availability

Product features:

Working volume - 25.1 cm3/rev

Turning direction - Two-way

Max. working pressure (continuous) - 220 bar

Flange type - SAE-A

Centering diameter - 82.6mm

Roller type - 16x32 spline - 9 teeth, SAE-A

Pump type - Toothed

Producent - OMFB Binotto

Description - NPLH SAE-A Hydraulic Pump with 2 Rear and 2 Side Ports 1 1/16-12 UNF-2B; SAE 12

Comparison code - 105-034-10256

Gear pump Binotto NPLH-32 SAE-A

Product code 10503410327

Availability: Currently not available

Notify me about availability

Product features:

Working volume - 32cc/rev

Turning direction - Two-way

Max. working pressure (continuous) - 180 bar

Flange type - SAE-A

Centering diameter - 82.6mm

Roller type - 16x32 spline - 9 teeth, SAE-A

Pump type - Toothed

Producent - OMFB Binotto

Description - NPLH SAE-A Hydraulic Pump with 2 Rear and 2 Side Ports 1 1/16-12 UNF-2B; SAE 12

Gear pump Binotto NPLH-40 SAE-A

Product code 10503410407

Availability: Currently not available

Notify me about availability

Product features:

Working volume - 39.9 cm3/rev

Turning direction - Two-way

Max. working pressure (continuous) - 140 bar

Flange type - SAE-A

Centering diameter - 82.6mm

Roller type - 16x32 spline - 9 teeth, SAE-A

Pump type - Toothed

Producent - OMFB Binotto

Description - NPLH SAE-A Hydraulic Pump with 2 Rear and 2 Side Ports 1 1/16-12 UNF-2B; SAE 12

Comparison code - 105-034-10407

Binotto NPLH-10 SAE-A gear pump

Product code 10593400106

Availability: Currently not available

Notify me about availability

Product features:

Working volume - 10cc/rev

Turning direction - Two-way

Max. working pressure (continuous) - 280 bar

Flange type - SAE-A

Centering diameter - 82.6mm

Roller type - 16x32 spline - 9 teeth, SAE-A

Pump type - Toothed

Producent - OMFB Binotto

Description - NPLH SAE-A hydraulic pump with 2 rear and 2 side ports G 1/2"

Comparison code - 105-934-00106

Binotto NPLH-12 SAE-A gear pump

Product code 10593400124

Availability: Currently not available

Notify me about availability

Product features:

Working volume - 11.92 cm3/rev

Turning direction - Two-way

Max. working pressure (continuous) - 280 bar

Flange type - SAE-A

Centering diameter - 82.6mm

Roller type - 16x32 spline - 9 teeth, SAE-A

Pump type - Toothed

Producent - OMFB Binotto

Description - NPLH SAE-A hydraulic pump with 2 rear and 2 side ports G 1/2"

Comparison code - 105-934-00124

Binotto NPLH-16 SAE-A gear pump

Product code 10593400160

Availability: Currently not available

Notify me about availability

Product features:

Working volume - 15.9 cm3/rev

Turning direction - Two-way

Max. working pressure (continuous) - 280 bar

Flange type - SAE-A

Centering diameter - 82.6mm

Roller type - 16x32 spline - 9 teeth, SAE-A

Pump type - Toothed

Producent - OMFB Binotto

Description - NPLH SAE-A hydraulic pump with 2 rear and 2 side ports G 1/2"

Comparison code - 105-934-00160

Binotto NPLH-20 SAE-A gear pump

Product code 10593400204

Availability: Currently not available

Notify me about availability

Product features:

Working volume - 20cc/rev

Turning direction - Two-way

Max. working pressure (continuous) - 260 bar

Flange type - SAE-A

Centering diameter - 82.6mm

Roller type - 16x32 spline - 9 teeth, SAE-A

Pump type - Toothed

Producent - OMFB Binotto

Description - NPLH SAE-A hydraulic pump with 2 rear and 2 side ports G 1/2"

Comparison code - 105-934-00204

Binotto NPLH-25 SAE-A gear pump

Product code 10593400259

Availability: Currently not available

Notify me about availability

Product features:

Working volume - 25.1 cm3/rev

Turning direction - Two-way

Max. working pressure (continuous) - 220 bar

Flange type - SAE-A

Centering diameter - 82.6mm

Roller type - 16x32 spline - 9 teeth, SAE-A

Pump type - Toothed

Producent - OMFB Binotto

Description - NPLH SAE-A hydraulic pump with 2 rear and 2 side ports G 3/4"

Comparison code - 105-934-00259

Binotto NPLH-32 SAE-A gear pump

Product code 10593400320

Availability: Currently not available

Notify me about availability

Product features:

Working volume - 32cc/rev

Turning direction - Two-way

Max. working pressure (continuous) - 180 bar

Flange type - SAE-A

Centering diameter - 82.6mm

Roller type - 16x32 spline - 9 teeth, SAE-A

Pump type - Toothed

Producent - OMFB Binotto

Description - NPLH SAE-A hydraulic pump with 2 rear and 2 side ports G 3/4"

Binotto NPLH-40 SAE-A gear pump

Product code 10593400400

Availability: Currently not available

Notify me about availability

Product features:

Working volume - 39.9 cm3/rev

Turning direction - Two-way

Max. working pressure (continuous) - 140 bar

Flange type - SAE-A

Centering diameter - 82.6mm

Roller type - 16x32 spline - 9 teeth, SAE-A

Pump type - Toothed

Producent - OMFB Binotto

Description - NPLH SAE-A hydraulic pump with 2 rear and 2 side ports G 3/4"

Comparison code - 105-934-00400
